Bathroom Vanity Sizes: Standard Dimensions and How to Measure

Bathroom vanity sizes commonly include widths of 24, 30, 36, 48, 60, and 72 inches. A common cabinet depth is 21 inches, while shallower designs can help in narrow bathrooms. Finished countertop height is often around 30–36 inches, depending on the cabinet, countertop, and mounting arrangement.

Before choosing a size, distinguish the cabinet dimensions from the space the completed installation will occupy. A vanity can fit along the wall but still leave too little room for its countertop, plumbing, or open drawers.

This guide compares common bathroom vanity dimensions, explains how to measure your space, and uses actual RARA cabinet listings to show why width, depth, and cabinet height must be checked separately.

Bathroom Vanity Size Chart

Use these dimensions as planning references, then confirm the specifications of the exact product. The sizes below describe common market options, not the availability of every RARA collection.

For an above-counter basin, measure the sink-rim height separately from the countertop height.

A nominal 30-inch vanity cabinet and a vanity sold with a 30-inch countertop are not necessarily the same width. Read the dimension drawing rather than relying on the product name.

What Is the Standard Bathroom Vanity Depth?

A common bathroom vanity cabinet depth is 21 inches. This is the front-to-back measurement, not the width along the wall.

Check the manufacturer’s drawing to establish whether the stated depth describes the cabinet box alone or includes the door and drawer fronts. The countertop and handles may project beyond that measurement.

For room planning, record the distance from the finished wall to the farthest projecting part of the completed vanity. This gives you the installed projection to use when checking the space in front.

18-Inch vs. 21-Inch Vanity Depth

An 18-inch-deep cabinet is three inches shallower than a 21-inch-deep cabinet. That difference can help in a narrow bathroom, but the finished countertop and hardware still determine the actual space gained.

These are general planning comparisons. They do not establish that an 18-inch-deep model is available in a particular RARA collection.

A wall-mounted vanity is not automatically shallow. Raising the cabinet off the floor changes its mounting height and appearance, but does not reduce how far it extends into the room.

Does Vanity Depth Include the Countertop?

Not necessarily. Cabinet depth and countertop depth may be listed separately.

For example, if a cabinet’s specified front edge is 21 inches from the finished wall and the top extends one inch beyond that edge, the countertop reaches 22 inches into the room. This is a measuring example, not a universal countertop specification.

Avoid counting the same component twice. If the dimension drawing already includes the doors, do not add their thickness again.

Which Bathroom Vanity Width Should You Choose?

Choose the width around the available installation space, the sink arrangement, and the storage you will use. Bathroom floor area alone is not enough to determine the right size.

A wider cabinet does not always provide more useful storage. Two sink bowls and their plumbing can occupy space that a single-sink arrangement leaves available for drawers.

For two basins, review our double-sink bathroom vanity size and layout guide before deciding on the total width.

Does a 36-Inch Cabinet Fit a 36-Inch Opening?

Do not assume it will. An opening may vary in width because the walls are uneven or out of square. Trim, countertop edges, and clearance needed for doors or drawers can also affect the fit.

Measure between finished walls at several heights and at both the front and rear of the planned cabinet position. Follow the selected product’s installation requirements when allowing for fillers or fitting space.

Cabinet Height vs. Finished Vanity Height

The cabinet height is only one part of the finished installation.

For a floor-standing cabinet, the countertop adds to the cabinet height. If the basin sits above the counter, its exposed height also affects the position of the sink rim.

For illustration, a 34½-inch cabinet with a 1½-inch top would place the countertop at 36 inches, before accounting for any other installation adjustments. Confirm actual component thicknesses rather than assuming every combination reaches that height.

For a floating vanity, the height of the cabinet box does not determine the installed countertop height. Its mounting position must also be specified.

If height is your main selection concern, see our bathroom vanity height guide. Accessible installations require additional planning beyond selecting a lower cabinet.

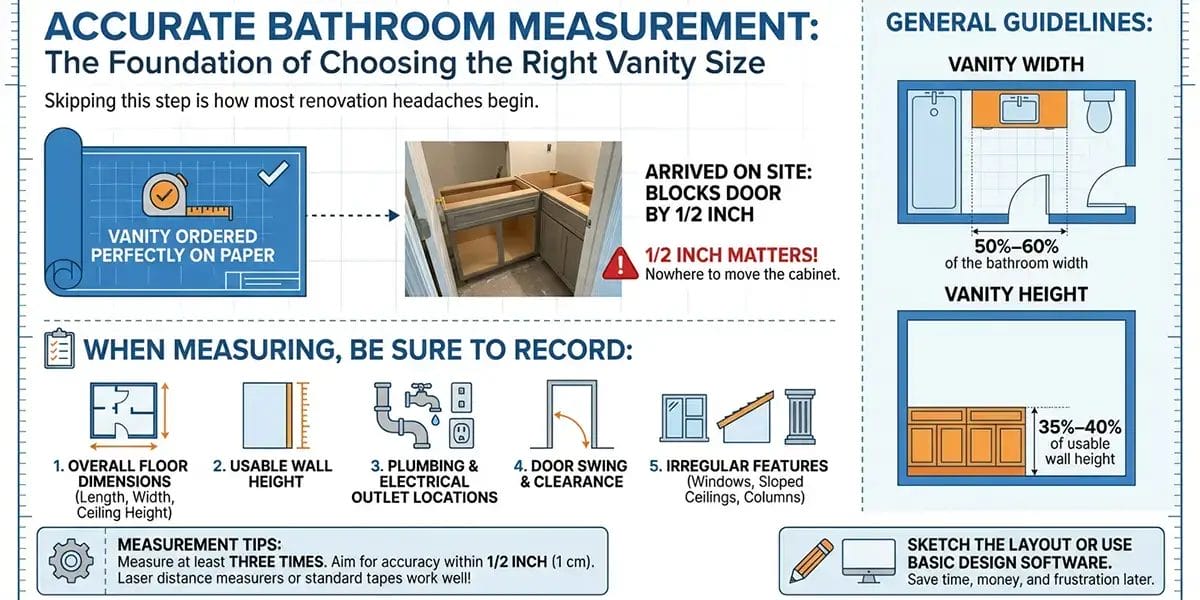

How to Measure for a Bathroom Vanity

Use a tape measure, a level, painter’s tape, and a simple sketch of the bathroom. Take measurements from finished surfaces wherever possible.

1. Record the Available Width

Measure the installation space and mark nearby walls, trim, and fixtures.

For an alcove, take several measurements rather than relying on one wall-to-wall reading. Record the narrowest point and any visible variation.

2. Mark the Finished Projection

Use painter’s tape on the floor to mark the proposed countertop’s front edge.

Check the selected product’s door and handle projection as well. This shows the occupied space more accurately than marking cabinet-box depth alone.

3. Check Moving Parts

Open the bathroom door and shower door. Check their paths against the proposed vanity.

Use the cabinet specifications to check drawer extension and door swing. A layout that works with everything closed may become awkward when a drawer is open.

4. Map the Plumbing

Record the drain and water-supply locations from the finished floor and a fixed side reference, such as the adjoining wall.

Compare those positions with the sink base, drawer banks, shelves, and internal dividers. External cabinet dimensions do not tell you how much unobstructed plumbing space is inside.

5. Confirm the Sink and Top Together

Check the sink’s minimum cabinet requirements, bowl dimensions, mounting hardware, and faucet space.

For a separately purchased countertop, confirm its width, depth, sink opening, and overhang. Do not order a top solely because its advertised width resembles the cabinet width.

6. Check Installation and Delivery Access

Confirm that the cabinet can pass through the entry route and be positioned in the bathroom. This is especially relevant for a large pre-assembled unit.

After the measurements and component choices are settled, follow our bathroom vanity installation guide for positioning, leveling, and securing the cabinet.

Worked Example: How Depth Changes the Space in Front

Suppose the distance from the finished vanity wall to an opposite obstruction is 58 inches.

The following example assumes the countertop is the farthest projecting component and the cabinet sits against the wall.

Option B leaves three additional inches in this example. However, it still needs a compatible sink, workable plumbing, and sufficient storage.

These calculations describe the layout only. They do not establish compliance with building or accessibility requirements. Door movements and applicable clearances must be checked separately.

Real RARA Bathroom Vanity Dimensions Compared

RARA’s product listings show why width, cabinet height, and depth need to be checked separately. A floor-standing sink base, a floating sink cabinet, and a storage drawer base serve different purposes even when some dimensions match.

The dimensions below describe the listed cabinets. They do not establish the dimensions of a completed installation with a countertop, sink, and hardware.

Floor-Standing Sink Base: Allow for the Countertop

The Nacreous Slim Dove White Shaker 36-inch sink base is listed at 36 inches wide, 34½ inches high, and 21 inches deep.

Its 34½-inch height describes the cabinet. The selected countertop adds to the finished height, and an above-counter basin can raise the sink rim further.

The false drawer is part of the sink-base configuration, not a working storage drawer. Confirm the sink and plumbing requirements before choosing the countertop and basin.

Floating Sink Cabinet: Cabinet Height Is Not Mounting Height

The Natural Grain Oak 36-inch floating sink cabinet is listed at 36 inches wide, 24 inches high, and 21 inches deep.

The cabinet is shorter than the floor-standing example, but both have a listed depth of 21 inches. A floating appearance does not automatically create more clearance in front of the vanity.

For the floating model, the distance above the finished floor, cabinet height, and countertop thickness together determine the final countertop height. Confirm the mounting arrangement, wall support, and plumbing compatibility before installation.

Storage Drawer Base: An 18-Inch Width Is Not an 18-Inch Depth

The Luminous Glossy White 18-inch three-drawer vanity base measures 18 inches wide, 34½ inches high, and 21 inches deep.

Here, “18-inch” describes the width along the wall. The cabinet still projects according to its 21-inch listed depth and the dimensions of the completed installation.

This model provides drawer storage. Do not substitute it for a sink base without a manufacturer-approved arrangement that accommodates the basin, drain, and drawer movement.

Compare the Exact Model Before Ordering

These examples illustrate different cabinet functions and dimensions; they are not a recommendation to combine different finishes into one vanity.

Once your measurements are confirmed, browse the ready-to-assemble bathroom vanity collections or pre-assembled bathroom vanity collections. Check the exact model’s dimensions, configuration, and installation requirements rather than applying one product’s specifications to an entire collection.

Bathroom Vanity Checklist Before Ordering

If a measurement is missing, resolve it before placing the order. A product photograph cannot confirm internal plumbing space, an alcove fit, or sink compatibility.

Adding tall storage changes the layout calculation. Our guide to planning a bathroom vanity with linen tower explains how to calculate the combined cabinet width and compare floor-standing towers with countertop linen cabinets.

Bathroom Vanity Size Questions

Can I replace a vanity with a different width?

Yes, if the new cabinet and countertop fit the room and suit the plumbing layout. Also check whether the change exposes unfinished flooring or wall surfaces previously hidden by the old vanity.

Does a double-sink vanity need to be deeper?

Not necessarily. Two sinks primarily require sufficient width and a compatible internal layout. Depth still depends on the selected basins, faucets, countertop, and plumbing.

Is an 18-inch vanity always 18 inches deep?

No. “18-inch vanity” may refer to the cabinet’s width. Check the dimensions labeled W, H, and D rather than assuming the number describes depth. The RARA three-drawer cabinet in this guide is 18 inches wide and 21 inches deep.

Does a floating vanity save floor space?

A floating vanity leaves an open area beneath the cabinet, but the space available in front depends on its installed projection. A floating cabinet and a floor-standing cabinet with the same depth may occupy the same front-to-back footprint.

Can I use a kitchen base cabinet as a bathroom vanity?

Only after checking its dimensions and suitability for the sink installation. Kitchen base cabinets are often deeper than vanity cabinets, and drawers or structural components may interfere with the basin and plumbing.

Choose the Size Before Choosing the Finish

Start with the installation space, then confirm the cabinet, countertop, sink, and plumbing as one arrangement. Once those dimensions work together, compare the finishes and storage configurations available from RARA RTA Cabinets.

For help planning the cabinet arrangement, request a free room design. Include your room measurements, plumbing locations, preferred sink configuration, and any countertop or sink specifications you already have.
